G-SMA-KD95A0

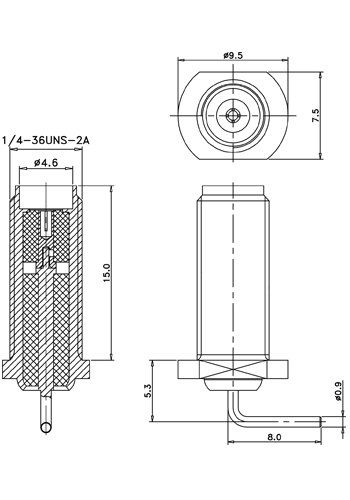

Product size
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-6GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE
