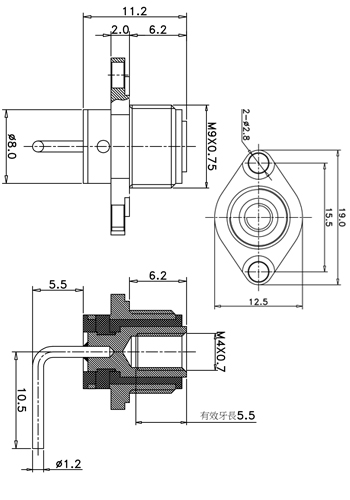

G-SMA-ALJD9300
Product size
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-6GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

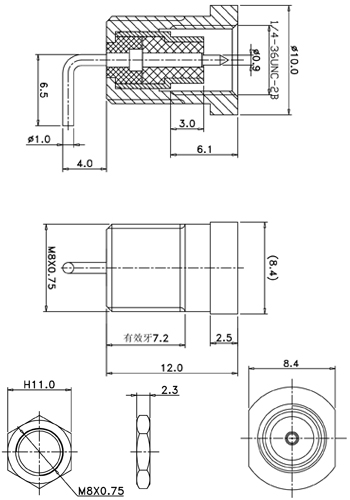

G-SMA-JD12200
Product size
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-12.4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

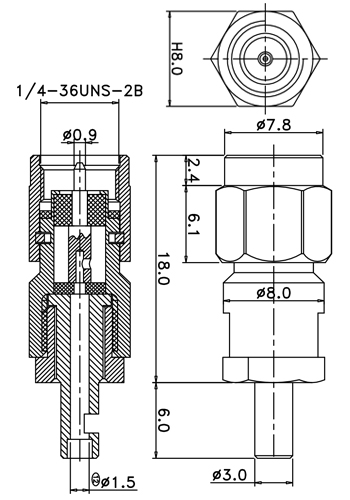

G-SMA-JD8000
Product size
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-3GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

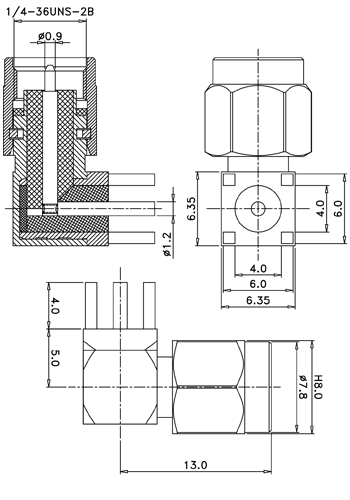

G-SMA-JWD600
Product size
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

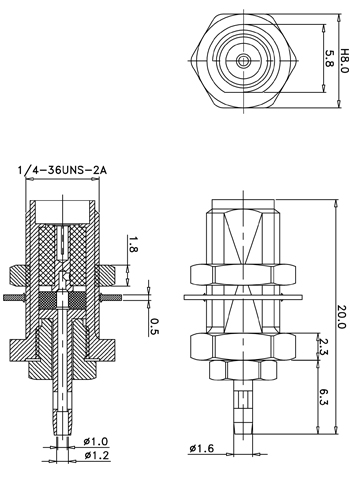

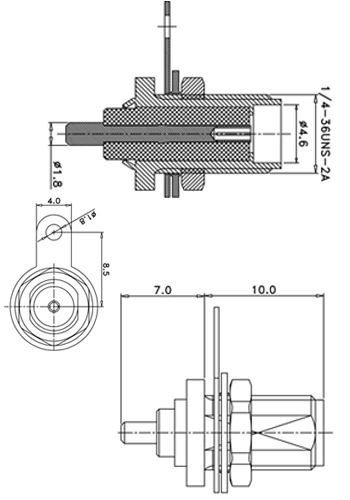

G-SMA-KD15C0
Product size
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

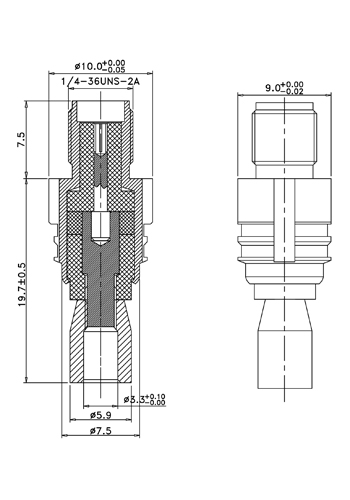

G-SMA-KD70A1
Product size
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-6GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE
G-SMA-KD95A0
Product size
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-6GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

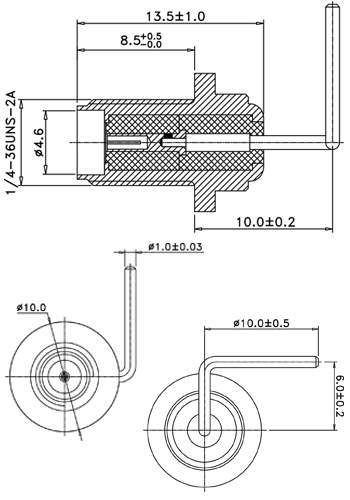

G-SMA-KD14500
Product size
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-12.4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE
G-SMA-KD4003
Product size
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

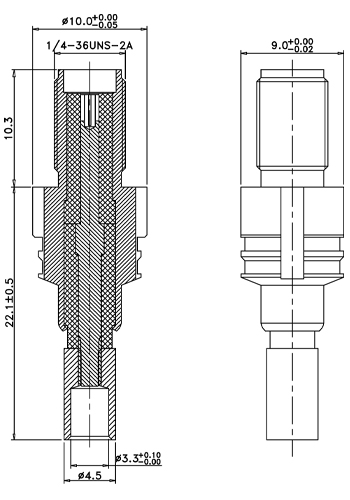

G-SMA-KD14200
Product size
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-12.4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE
G-SMA-KD15600
Product size
.jpg)
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-12.4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

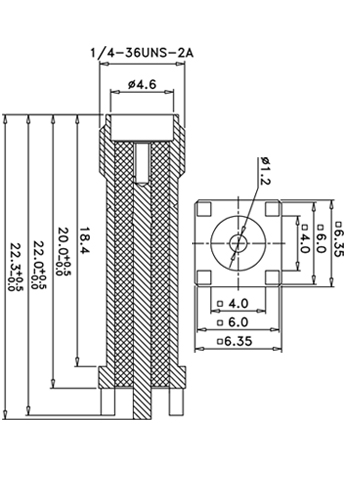

G-SMA-KHD14A0
Product size
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-12.4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

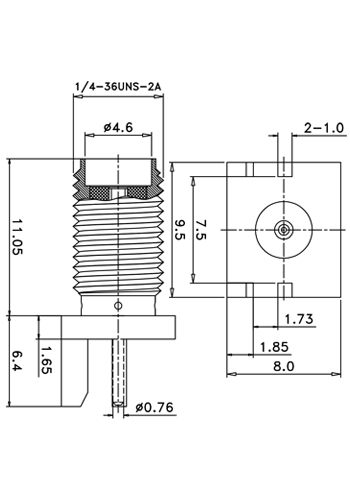

G-SMA-KHD2600
Product size
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-12.4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

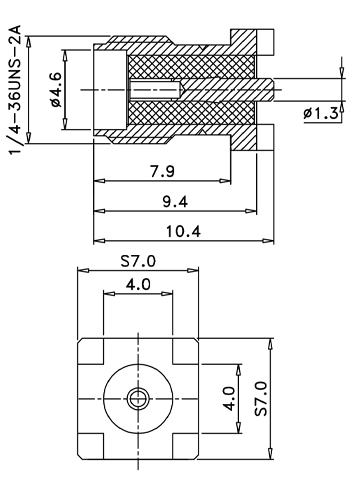

G-SMA-KHD2700
Product size
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-12.4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

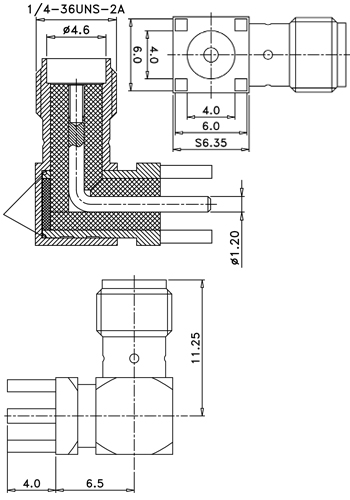

G-SMA-KWHD1301
Product size
.jpg)
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-6GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

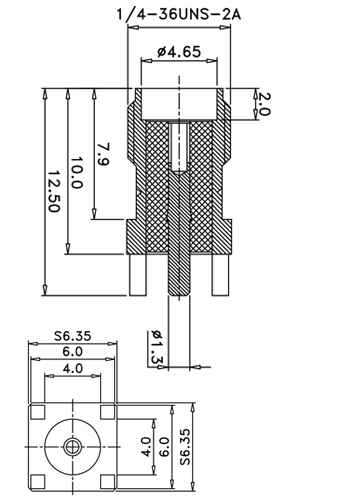

G-SMA-KHD3000
Product size
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

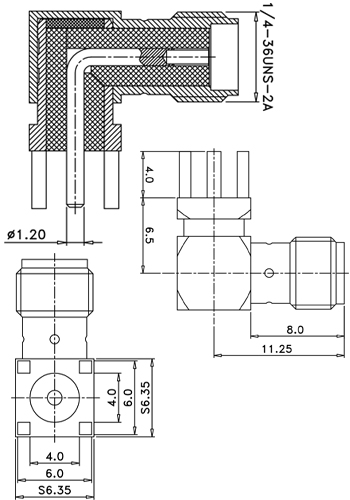

G-SMA-KWHD1300
Product size
.jpg)
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE
