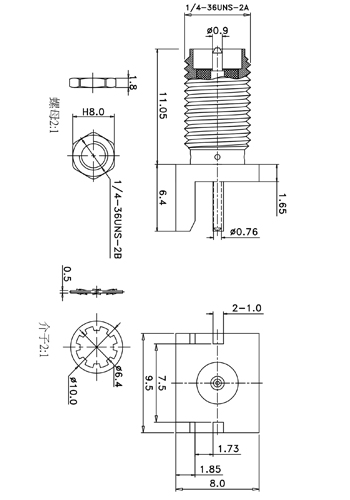

G-(RP)SMA-JHD800
Product size
SMA-JHD800-1(1).jpg)
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-12.4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

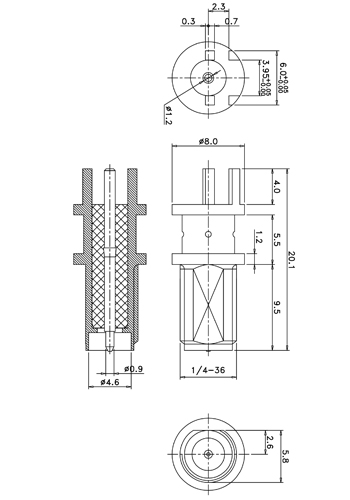

G-(RP)SMA-JHD900
Product size
SMA-JHD900-1(1).jpg)
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

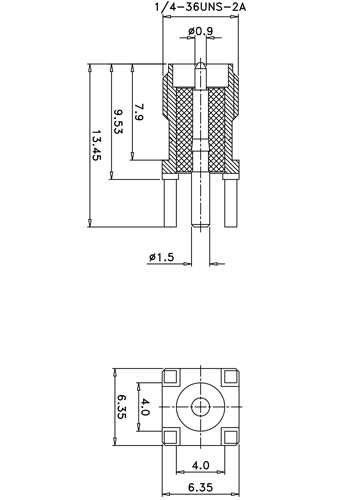

G-(RP)SMA-JHD100
Product size
SMA-JHD100-1.jpg)
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-12.4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

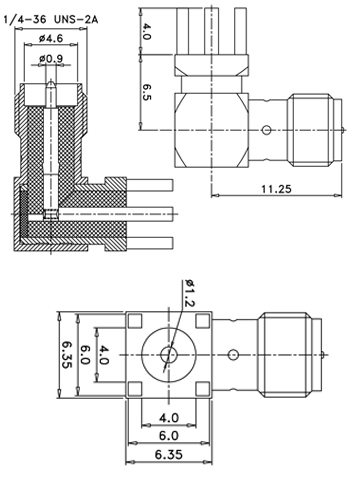

G-(RP)SMA-JWHD6A0
Product size
SMA-JWHD6A0-1.jpg)
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-3GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

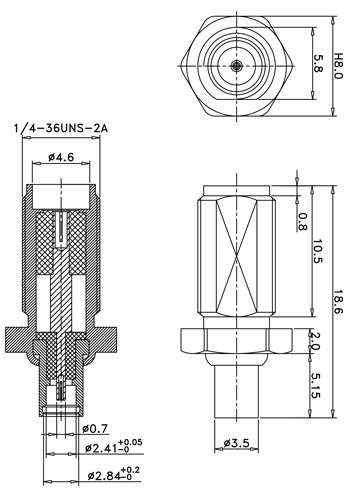

G-(RP)SMA-MMCX-KYK100
Product size
SMA-MMCX-KYK100-1.jpg)
1, Environmental
Temperature range : -40 ~ +90 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 170V (RMS)
3) Frequency range : 0-6GHz
4) Dielectric withstanding voltage : 500V ( RMS ) at sea level
5) Contact resistance : center contact <= 5 mΩ ,outer contact : <= 10 mΩ
6) Insulation resistance : >= 1000 MΩ
7) VSWR : <= 1.25
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

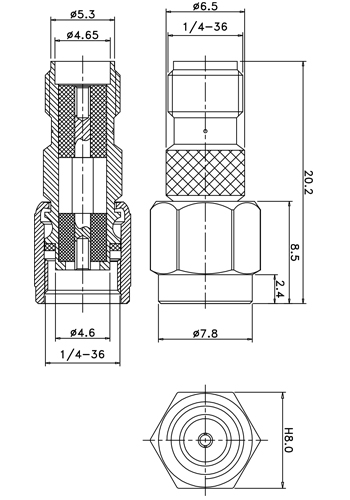

G-SMA_(RP)SMA-KK100
Product size
SMA-KK100-1.jpg)
1, Environmental
Temperature range : -50 ~ +100 ℃
2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-3GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3
3, Mechanical Characteristics
Durability : 500 cycles
4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE
