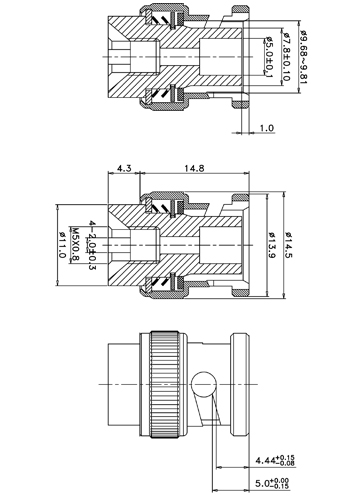

G-BNC-JD16A6

Product size

1, Environmental
Temperature range : -50 ~ +100 ℃

2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage :  500V (rms)
3) Frequency range :   DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3

3, Mechanical Characteristics
Durability : 500 cycles

4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

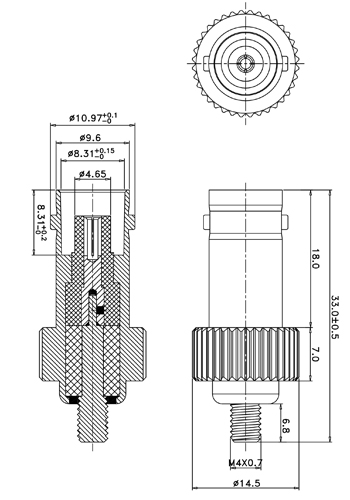

G-BNC-KD1600

Product size

1, Environmental
Temperature range : -50 ~ +100 ℃

2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage :  500V (rms)
3) Frequency range :   DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3

3, Mechanical Characteristics
Durability : 500 cycles

4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators :POM

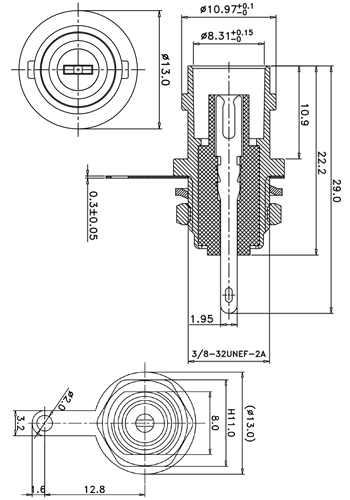

G-BNC-KD106

Product size

1, Environmental
Temperature range : -50 ~ +100 ℃

2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage :  500V (rms)
3) Frequency range :   DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3

3, Mechanical Characteristics
Durability : 500 cycles

4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

G-BNC-KD1800

Product size

1, Environmental
Temperature range : -50 ~ +100 ℃

2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage :  500V (rms)
3) Frequency range :   DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3

3, Mechanical Characteristics
Durability : 500 cycles

4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

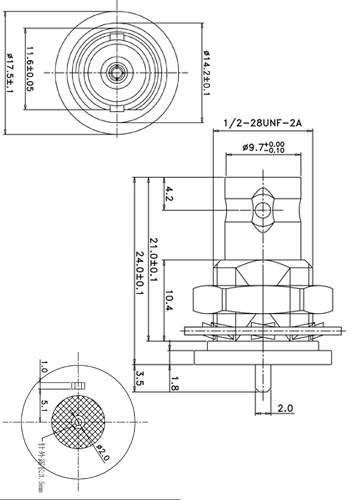

G-BNC-KD1900

Product size



1, Environmental
Temperature range : -50 ~ +100 ℃

2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage :  500V (rms)
3) Frequency range :   DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3

3, Mechanical Characteristics
Durability : 500 cycles

4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

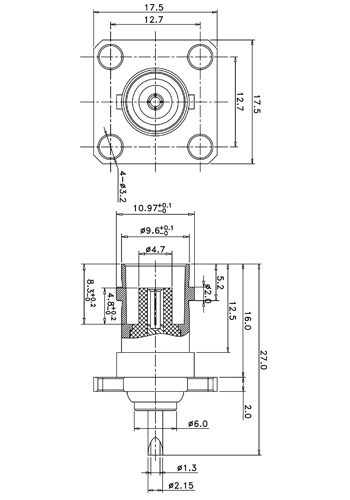

G-BNC-ALKFD2

Product size



1, Environmental
Temperature range : -50 ~ +100 ℃

2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage :  500V (rms)
3) Frequency range :   DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3

3, Mechanical Characteristics
Durability : 500 cycles

4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE
