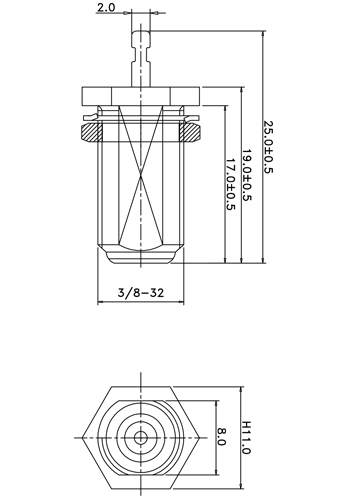

G-F-KD51A0

Product size

1, Environmental
Temperature range : -50 ~ +100 ℃

2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3

3, Mechanical Characteristics
Durability : 500 cycles

4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

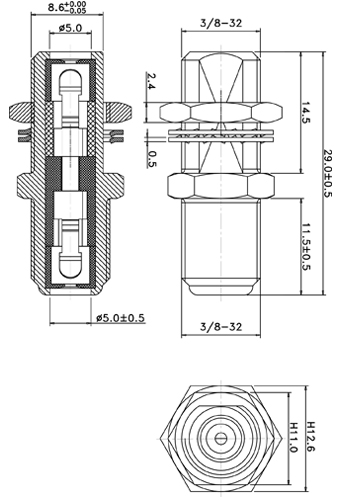

G-F-F-KK100

Product size

1, Environmental
Temperature range : -50 ~ +100 ℃

2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3

3, Mechanical Characteristics
Durability : 500 cycles

4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

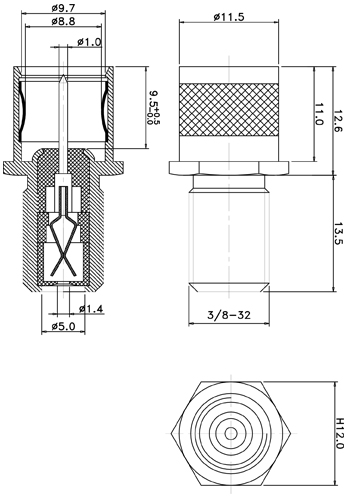

G-F-F-KQJ300

Product size

1, Environmental
Temperature range : -50 ~ +100 ℃

2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3

3, Mechanical Characteristics
Durability : 500 cycles

4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

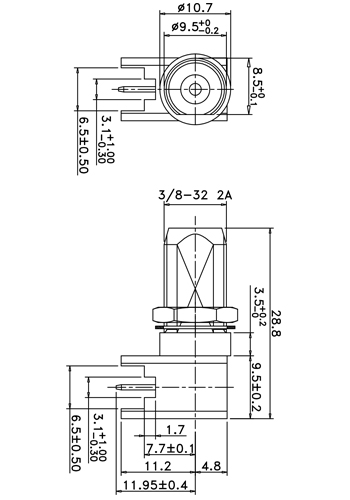

G-F-KD6A7

Product size

1, Environmental
Temperature range : -50 ~ +100 ℃

2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3

3, Mechanical Characteristics
Durability : 500 cycles

4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

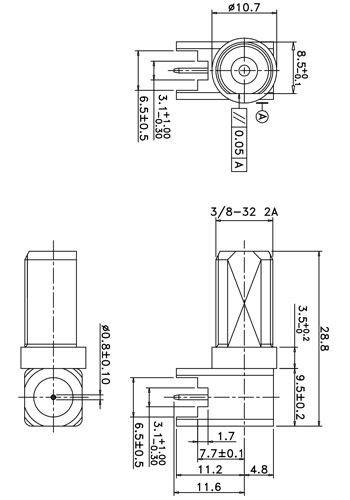

G-F-KD6A2

Product size

1, Environmental
Temperature range : -50 ~ +100 ℃

2, Electrical Charateristics

1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3

3, Mechanical Characteristics
Durability : 500 cycles

4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

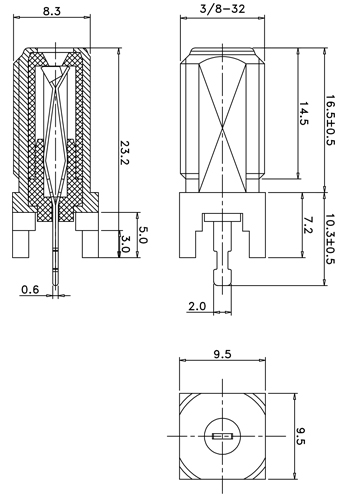

G-F-KD5400

Product size

1, Environmental
Temperature range : -50 ~ +100 ℃

2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3

3, Mechanical Characteristics
Durability : 500 cycles

4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

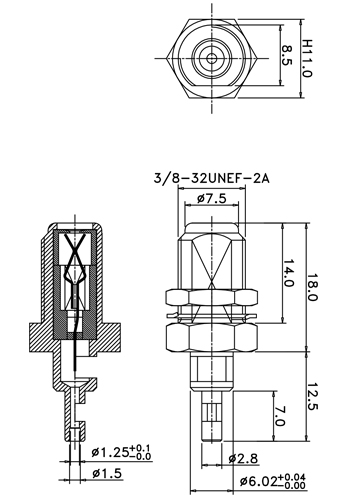

G-F-KD5500

Product size

1, Environmental
Temperature range : -50 ~ +100 ℃

2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3

3, Mechanical Characteristics
Durability : 500 cycles

4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE

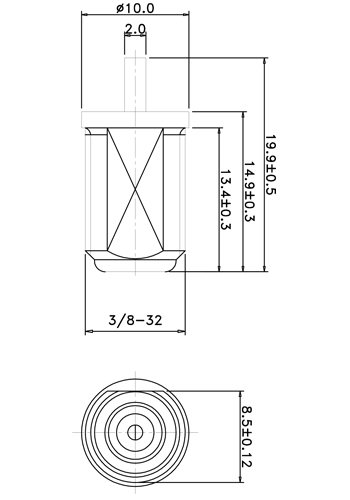

G-F-KD5801

Product size

1, Environmental
Temperature range : -50 ~ +100 ℃

2, Electrical Charateristics
1) Characteristic impedance : 50 Ω
2) Working voltage : 300V max
3) Frequency range : DC-4GHz
4) Dielectric withstanding voltage : 1000V ( volts RMS ) at sea level
5) Contact resistance : center contact <= 3 mΩ ,outer contact : <= 2 mΩ
6) Insulation resistance : >= 5000 MΩ
7) VSWR : <= 1.3

3, Mechanical Characteristics
Durability : 500 cycles

4, Material and Plating
1) Body : Brass , gold plated
2) Female center contacts : Brass,gold plated
3) Insulators : PTFE
