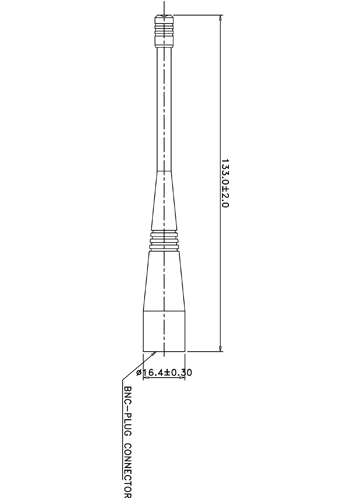

G-RA0016132001-00336
Product size
1, Electrical Characteristics
i) Resonate Frequency : 445±10 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
G-RA0B13096038-0872

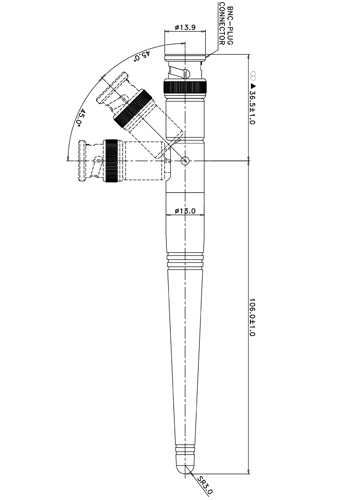

Product size
1, Electrical Characteristics
i) Resonate Frequency : 433±10MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
ii) 360° torsional shall be 0.5kgcm to 4.0 kgcm
G-RA0B80037110-0279

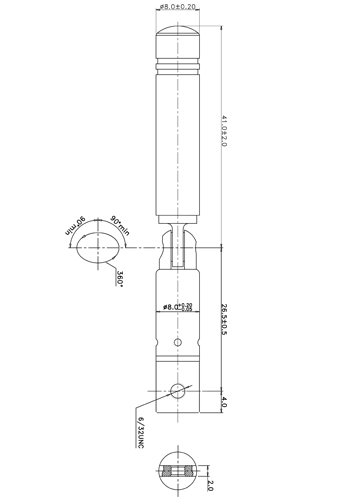

Product size
1, Electrical Characteristics
i) Resonate Frequency : 418±10 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
ii) 180° sway strength shall be 0.5kgcm to 2.5 kgcm
iii) 360° torsional shall be 0.5kgcm to 3.0 kgcm
G-RA0G80037090-1489
Product size
1, Electrical Characteristics
i) Resonate Frequency :428 ± 10 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm

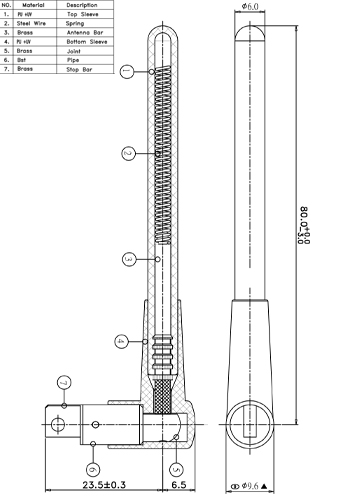

G-RA0J60080001-I0008
Product size
1, Electrical Characteristics
i) Resonate Frequency : 433±10MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm

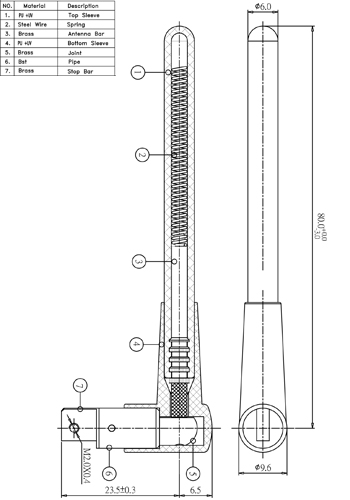

G-RA0J60080047-DG140
Product size
1, Electrical Characteristics
i) Resonate Frequency : 433±10 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
ii) 360° torsional shall be 0.5kgcm to 4.0 kgcm

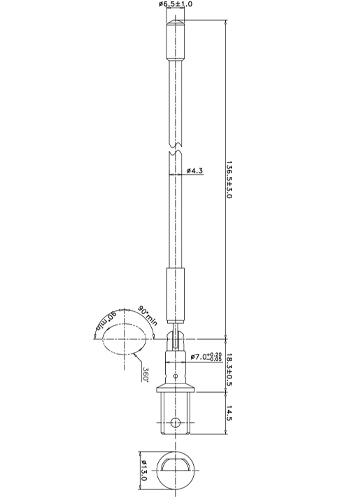

G-RA0B60098007-A0165
Product size
1, Electrical Characteristics
i) Resonate Frequency : 426.25±10 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
ii) 180° sway strength shall be 0.5kgcm to 3.0 kgcm
iii) 360° torsional shall be 0.5kgcm to 3.0 kgcm
G-RA0K12065001-SZ485

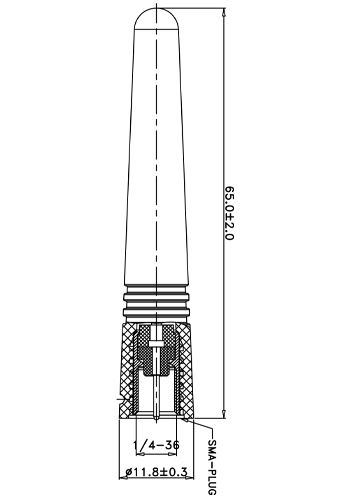

Product size
1, Electrical Characteristics
i) Resonate Frequency :385-428 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 3.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm

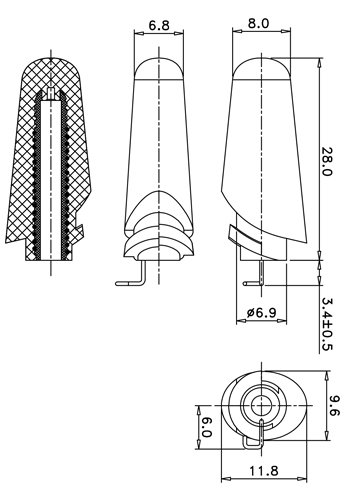

G-RA0K10028003-ZS010
Product size
1, Electrical Characteristics
i) Resonate Frequency :433.92 ± 10 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm

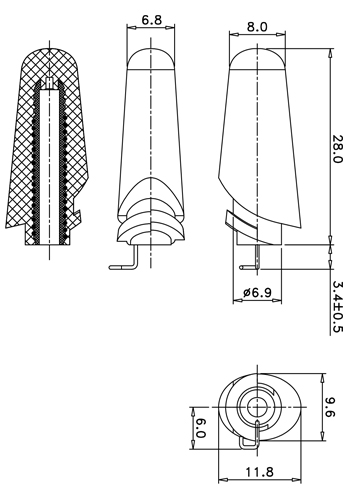

G-RA0K10028004-ZS010
Product size
1, Electrical Characteristics
i) Resonate Frequency : 433.92 ± 10 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm

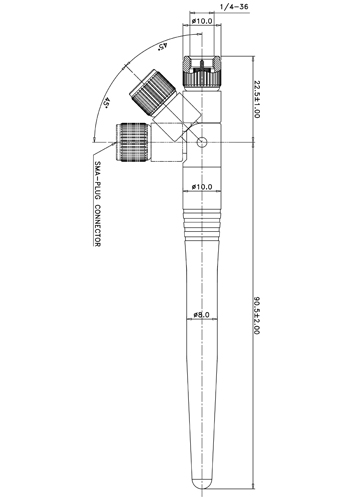

G-RA0K10090133-0304
Product size
1, Electrical Characteristics
i) Resonate Frequency : 433±10 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
G-RA0K11013004-K0086

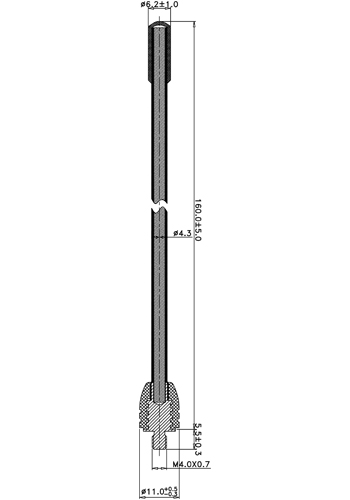

Product size
1, Electrical Characteristics
i) Resonate Frequency : 400~425 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
i)Vertical Direction: 6.0 kgs (Except antenna and the part of connecting the cap)
ii)Vertical Direction: 4.0 kgs (Between the sleeve and the cap)

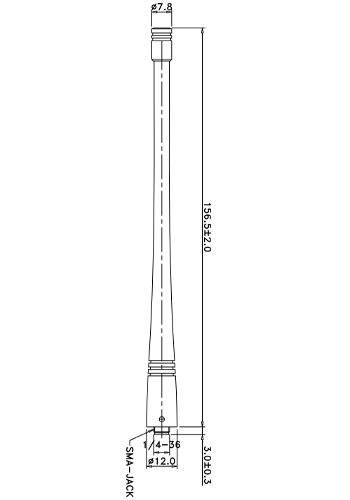

G-RA0K12150037-A0151
Product size
1, Electrical Characteristics
i) Resonate Frequency : 400~470 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
G-RA0K12150048-QZ011

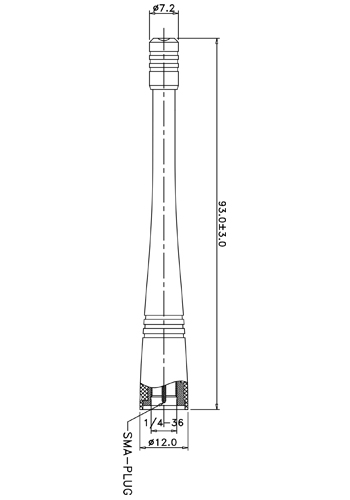

Product size
1, Electrical Characteristics
i) Resonate Frequency : 420±10 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm

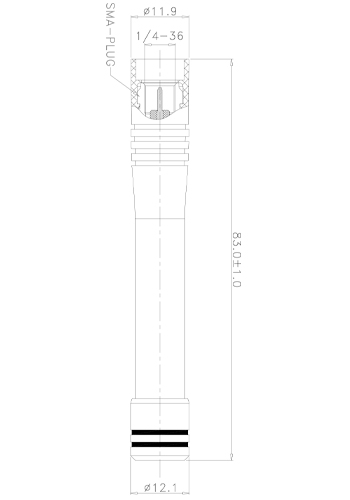

G-RA0K12160001-BON
Product size
1, Electrical Characteristics
i) Resonate Frequency :460±10 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 3.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm

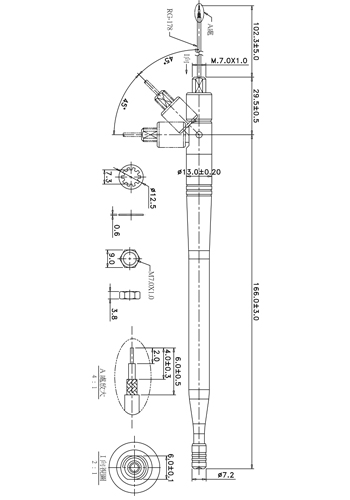

G-RA0K13200312-SZ478
Product size
1, Electrical Characteristics
i) Resonate Frequency : 433±10 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm

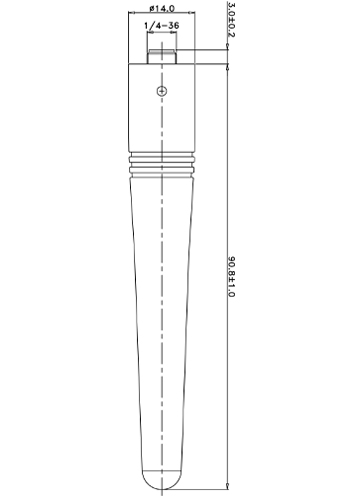

G-RA0K14091059-B0072
Product size
1, Electrical Characteristics
i) Resonate Frequency :350-400 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm

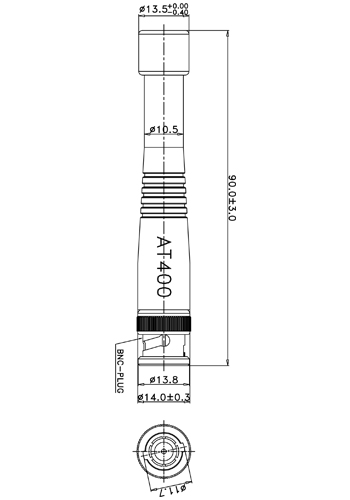

G-RA0K14101051-1434
Product size
1, Electrical Characteristics
i) Resonate Frequency : 433±3 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm

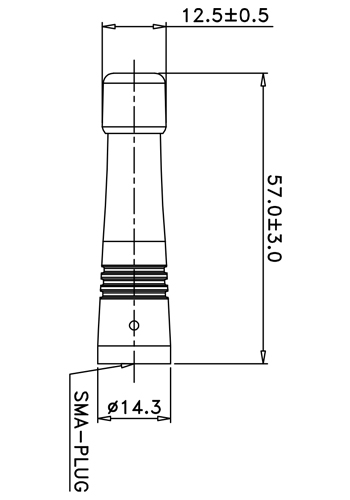

G-RA0K14149106-N0069
Product size
1, Electrical Characteristics
i) Resonate Frequency :450-470MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm

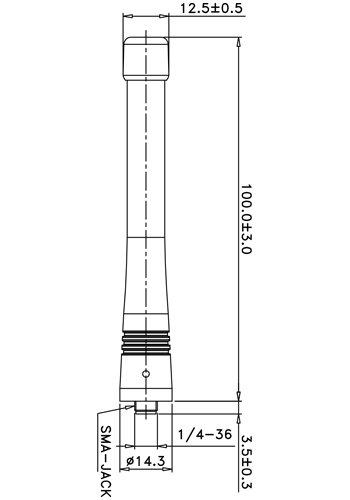

G-RA0K14149113-SH028
Product size
1, Electrical Characteristics
i) Resonate Frequency : 450~520 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
G-RA0K14155042-U0035

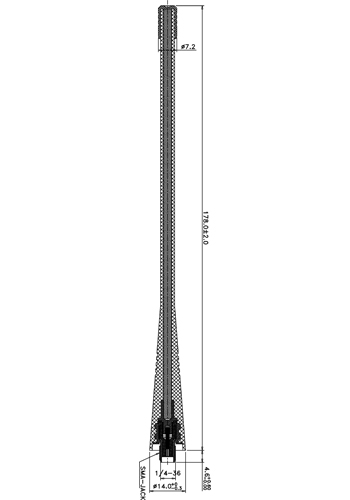

Product size
1, Electrical Characteristics
i) Resonate Frequency : 400~420 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm

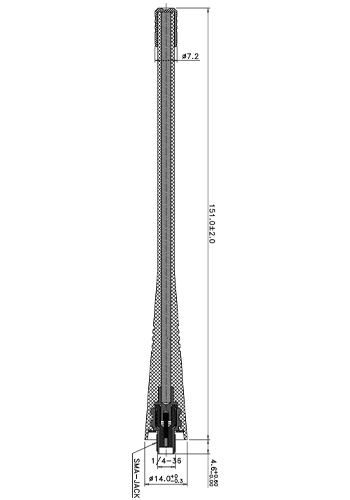

G-RA0K14155043-U0035
Product size
1, Electrical Characteristics
i) Resonate Frequency : 450~470 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm

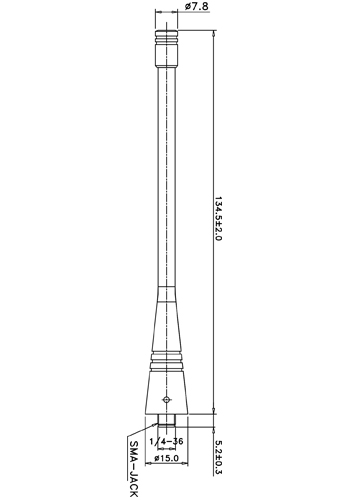

G-RA0K15160033-SH028
Product size
1, Electrical Characteristics
i) Resonate Frequency : 450~470 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
G-RAPK15160049-SM009

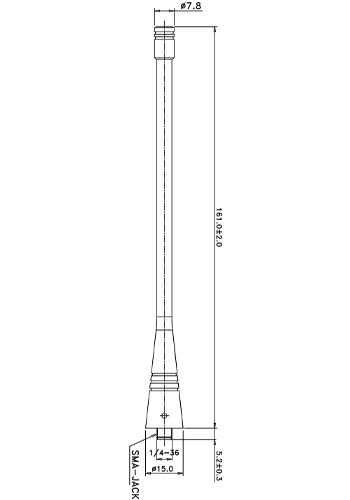

Product size
1, Electrical Characteristics
i) Resonate Frequency : 400~470 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
G-RA0K16084001-0299

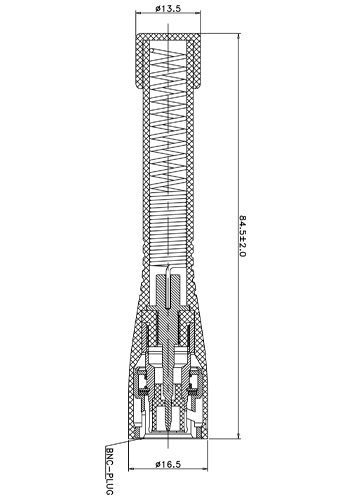

Product size
1, Electrical Characteristics
i) Resonate Frequency : 433 ±10 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
G-RA0K16124003-N0069

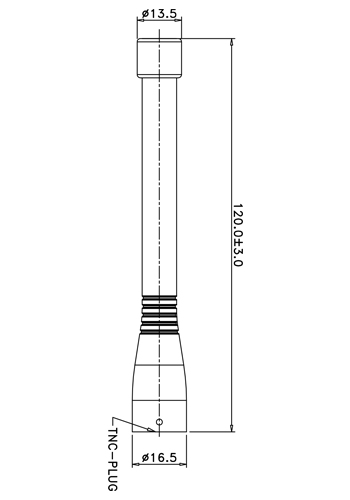

Product size
1, Electrical Characteristics
i) Resonate Frequency : 400~480 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
G-RA0K50060009-R0060

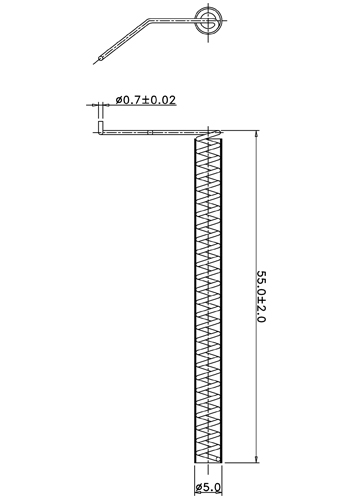

Product size
1, Electrical Characteristics
i) Resonate Frequency : 433.92±10 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
G-RAPK14120004-SM009

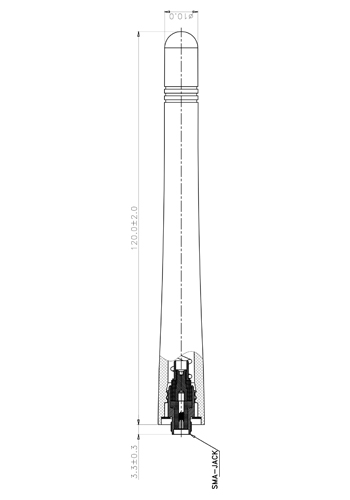

Product size
1, Electrical Characteristics
i) Resonate Frequency : 400~470 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
G-RAPK14149109-SH014

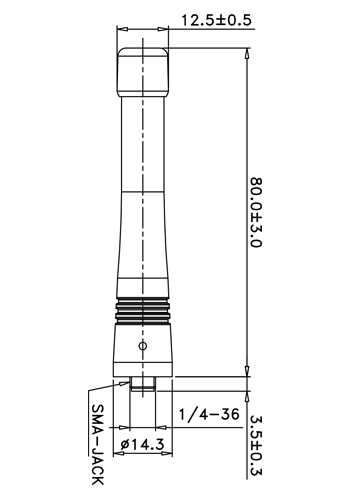

Product size
1, Electrical Characteristics
i) Resonate Frequency :350-390 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
G-RA0050078069-GZ094

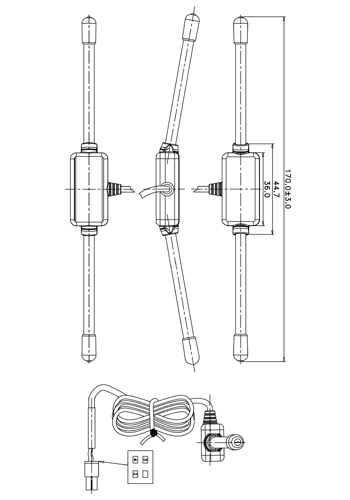

Product size
1, Electrical Characteristics
i) Resonate Frequency : 433.92±10 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.3 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V
2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
G-RAOK14152002-A0151
One-Piece Injection Walkie Talkie Antenna
1, Electrisal Charateristics
1) Characteristic impedance : 50 Ω
2) Frequency range : 0 ~ 3GHZ
3) Insertion loss : -2.0dB at 3GHZ
4) VSWR : <= 2.0
