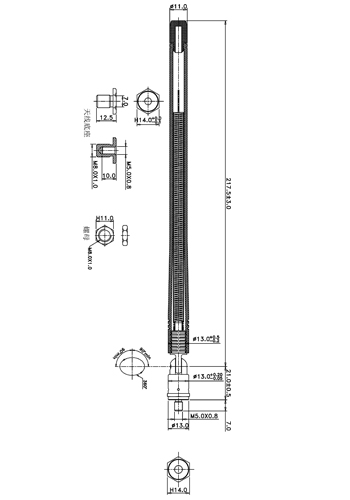

G-RA0B13195001-SZ514

Product size

1, Electrical Characteristics
i) Resonate Frequency : 87~108 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 3.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V

2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
i)Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
ii) 180° sway strength shall be 1.0kgcm to 3.0 kgcm
iii) 360° torsional shall be 0.5kgcm to 4.0 kgcm

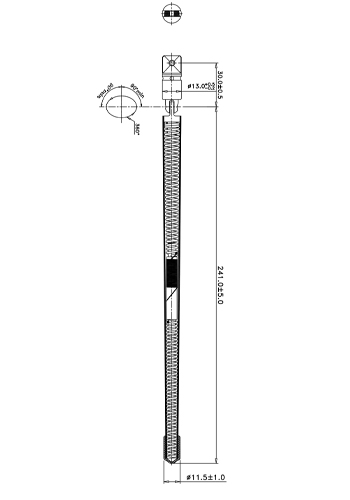

G-RA0J13263029-S0222

Product size

1, Electrical Characteristics

i) Resonate Frequency : 87.5~108 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V

2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
i)Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
ii) 180° sway strength shall be 1.0kgcm to 5.0 kgcm
iii) 360° torsional shall be 1.0kgcm to 5.0 kgcm

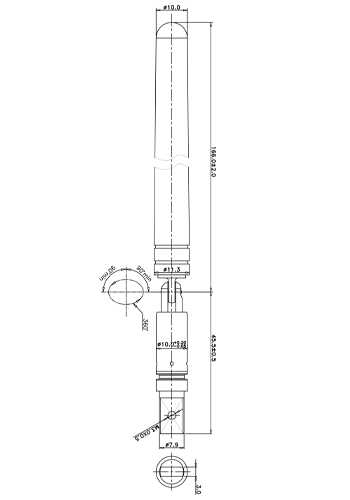

G-RA0K11161002-S0222

Product size

1, Electrical Characteristics
i) Resonate Frequency : 87~108 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V

2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
i)Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
ii) 180° sway strength shall be 1.0kgcm to 6.0 kgcm
iii) 360° torsional shall be 1.0kgcm to 6.0 kgcm

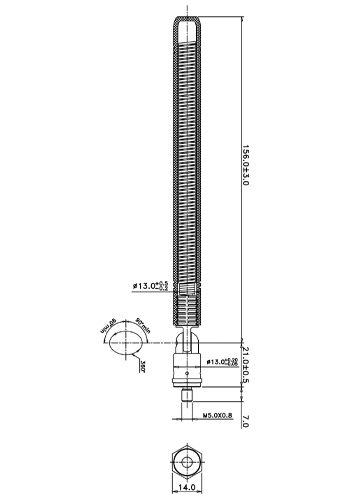

G-RA0B13147001-SZ514

Product size

1, Electrical Characteristics
i) Resonate Frequency : 87~108 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V

2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
i)Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
ii) 180° sway strength shall be 1.5kgcm to 3.5 kgcm
iii) 360° torsional shall be 0.5kgcm to 6.0 kgcm

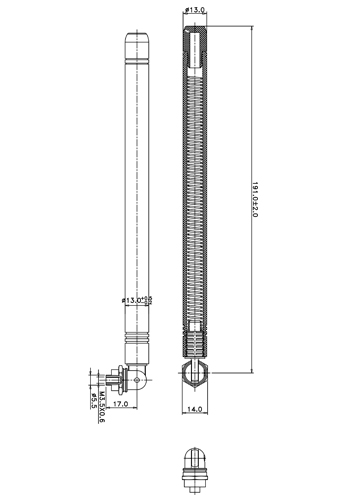

G-RA0B13168003-SZ514

Product size

1, Electrical Characteristics
i) Resonate Frequency : 87~108 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V

2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
i)Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm
ii)180°sway strength shall be 1.5kgcm to 5.0 kgcm

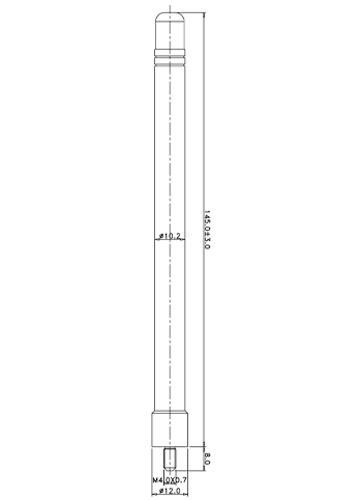

G-RA0K12133032-DG313

Product size

1, Electrical Characteristics
i) Resonate Frequency : 88~108 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V

2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
i)Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm

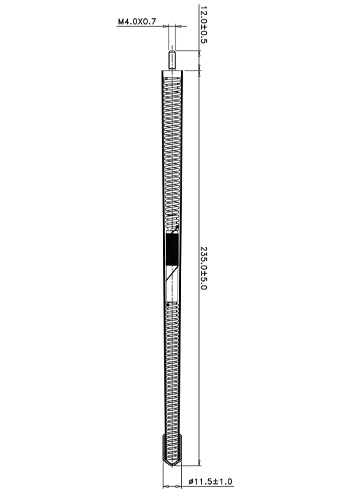

G-RA0K13263031-H0150

Product size

1, Electrical Characteristics
i) Resonate Frequency : 76~90 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V

2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
i)Vertical Direction: 2.0 kgs
Rotating Direction: 2.0 kgcm

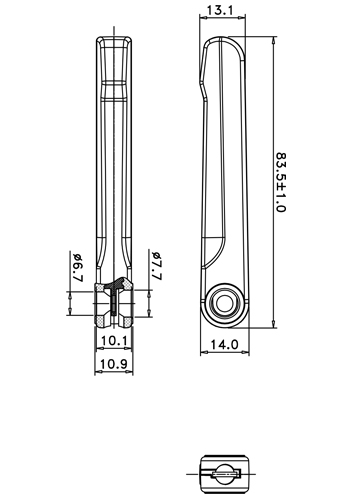

G-RA0K14084002-DG023

Product size

1, Electrical Characteristics
i) Resonate Frequency : 87.5~108 MHz
ii) Impedance : 50 ohm Nominal
iii) Radiation Pattern : Omni Directional
iv) Polarization : Vertical
v) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point
vi) Insulation resistance : 500 M ohm at DC 500V

2, Mechanical characteristics:
The strength of fixing between sleeve and stud shall withstand the following stresses
i)Vertical Direction: 2.0 kgs
ii)Rotating Direction: 2.0 kgcm
